Add sources to your DAG

Related reference docs

• Source properties
• Source configurations
• {{ source() }} jinja function
• source freshness command

Using sources

Sources make it possible to name and describe the data loaded into your warehouse by your Extract and Load tools. By declaring these tables as sources in dbt, you can then

• select from source tables in your models using the {{ source() }} function, helping define the lineage of your data
• test your assumptions about your source data
• calculate the freshness of your source data

Declaring a source

Sources are defined in .yml files nested under a sources: key.

models/<filename>.yml

version: 2

sources:
  - name: jaffle_shop
    database: raw
    schema: jaffle_shop
    tables:
      - name: orders
      - name: customers

  - name: stripe
    tables:
      - name: payments

*By default, schema will be the same as name. Add schema only if you want to use a source name that differs from the existing schema.

If you're not already familiar with these files, be sure to check out the documentation on properties.yml files before proceeding.

Selecting from a source

Once a source has been defined, it can be referenced from a model using the {{ source()}} function.

models/orders.sql

select
  ...

from {{ source('jaffle_shop', 'orders') }}

left join {{ source('jaffle_shop', 'customers') }} using (customer_id)

dbt will compile this to the full table name:

target/compiled/jaffle_shop/models/my_model.sql

select
  ...

from raw.jaffle_shop.orders

left join raw.jaffle_shop.customers using (customer_id)

Using the {{ source () }} function also creates a dependency between the model and the source table.

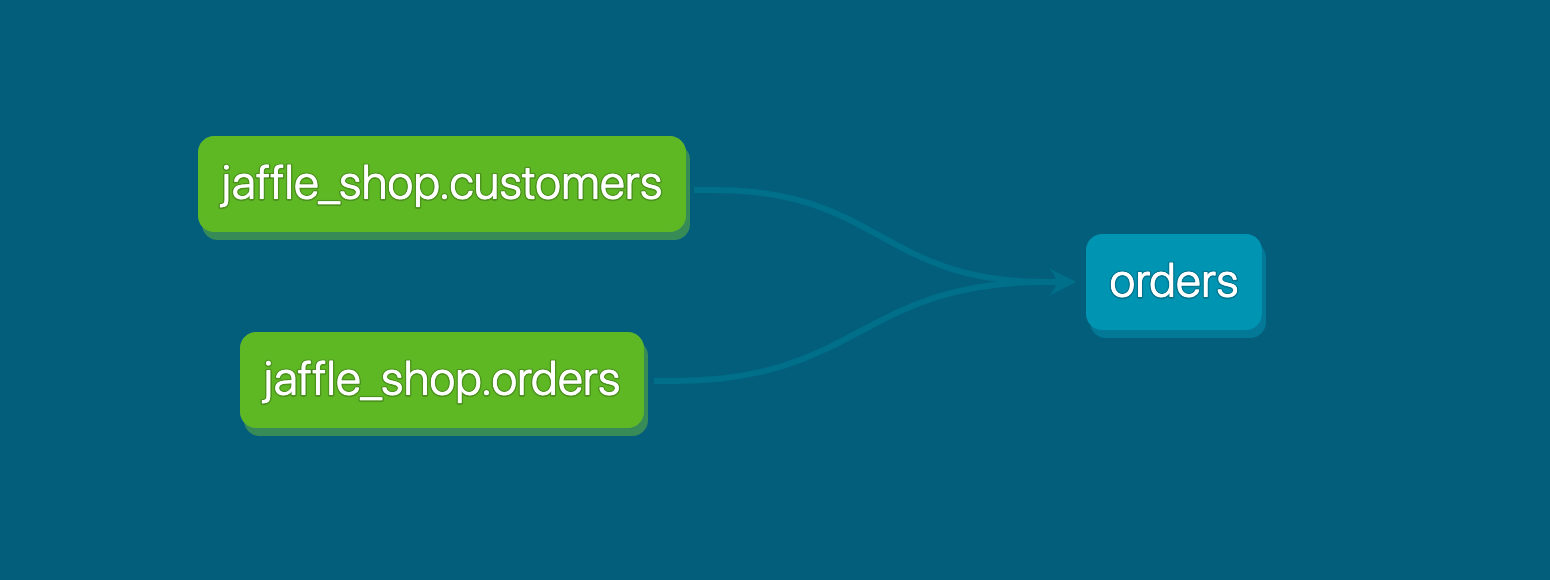

The source function tells dbt a model is dependent on a source

Testing and documenting sources

You can also:

• Add data tests to sources
• Add descriptions to sources, that get rendered as part of your documentation site

These should be familiar concepts if you've already added tests and descriptions to your models (if not check out the guides on testing and documentation).

models/<filename>.yml

version: 2

sources:
  - name: jaffle_shop
    description: This is a replica of the Postgres database used by our app
    tables:
      - name: orders
        description: >
          One record per order. Includes cancelled and deleted orders.
        columns:
          - name: id
            description: Primary key of the orders table
            tests:
              - unique
              - not_null
          - name: status
            description: Note that the status can change over time

      - name: ...

  - name: ...

You can find more details on the available properties for sources in the reference section.

FAQs

What if my source is in a poorly named schema or table?

By default, dbt will use the name: parameters to construct the source reference.

If these names are a little less-than-perfect, use the schema and identifier properties to define the names as per the database, and use your name: property for the name that makes sense!

models/<filename>.yml

version: 2

sources:
  - name: jaffle_shop
    schema: postgres_backend_public_schema
    database: raw
    tables:
      - name: orders
        identifier: api_orders

In a downstream model:

select * from {{ source('jaffle_shop', 'orders') }}

Will get compiled to:

select * from raw.postgres_backend_public_schema.api_orders

What if my source is in a different database to my target database?

Use the database property to define the database that the source is in.

models/<filename>.yml

version: 2

sources:
  - name: jaffle_shop
    database: raw
    tables:
      - name: orders
      - name: customers

I need to use quotes to select from my source, what should I do?

This is reasonably common on Snowflake in particular.

By default, dbt will not quote the database, schema, or identifier for the source tables that you've specified.

To force dbt to quote one of these values, use the quoting property:

models/<filename>.yml

version: 2

sources:
  - name: jaffle_shop
    database: raw
    quoting:
      database: true
      schema: true
      identifier: true

    tables:
      - name: order_items
      - name: orders
        # This overrides the `jaffle_shop` quoting config
        quoting:
          identifier: false

How do I run tests on just my sources?

To run tests on all sources, use the following command:

  dbt test --select "source:*"

(You can also use the -s shorthand here instead of --select)

To run tests on one source (and all of its tables):

$ dbt test --select source:jaffle_shop

And, to run tests on one source table only:

$ dbt test --select source:jaffle_shop.orders

How do I run models downstream of one source?

To run models downstream of a source, use the source: selector:

$ dbt run --select source:jaffle_shop+

(You can also use the -s shorthand here instead of --select)

To run models downstream of one source table:

$ dbt run --select source:jaffle_shop.orders+

Check out the model selection syntax for more examples!

Snapshotting source data freshness

With a couple of extra configs, dbt can optionally snapshot the "freshness" of the data in your source tables. This is useful for understanding if your data pipelines are in a healthy state, and is a critical component of defining SLAs for your warehouse.

Declaring source freshness

To configure sources to snapshot freshness information, add a freshness block to your source and loaded_at_field to your table declaration:

models/<filename>.yml

version: 2

sources:
  - name: jaffle_shop
    database: raw
    freshness: # default freshness
      warn_after: {count: 12, period: hour}
      error_after: {count: 24, period: hour}
    loaded_at_field: _etl_loaded_at

    tables:
      - name: orders
        freshness: # make this a little more strict
          warn_after: {count: 6, period: hour}
          error_after: {count: 12, period: hour}

      - name: customers # this inherits the default freshness defined in the jaffle_shop source block at the beginning


      - name: product_skus
        freshness: null # do not check freshness for this table

In the freshness block, one or both of warn_after and error_after can be provided. If neither is provided, then dbt will not calculate freshness snapshots for the tables in this source.

Additionally, the loaded_at_field is required to calculate freshness for a table. If a loaded_at_field is not provided, then dbt will not calculate freshness for the table.

These configs are applied hierarchically, so freshness and loaded_at_field values specified for a source will flow through to all of the tables defined in that source. This is useful when all of the tables in a source have the same loaded_at_field, as the config can just be specified once in the top-level source definition.

Checking source freshness

To snapshot freshness information for your sources, use the dbt source freshness command (reference docs):

$ dbt source freshness

Behind the scenes, dbt uses the freshness properties to construct a select query, shown below. You can find this query in the query logs.

select
  max(_etl_loaded_at) as max_loaded_at,
  convert_timezone('UTC', current_timestamp()) as snapshotted_at
from raw.jaffle_shop.orders

The results of this query are used to determine whether the source is fresh or not:

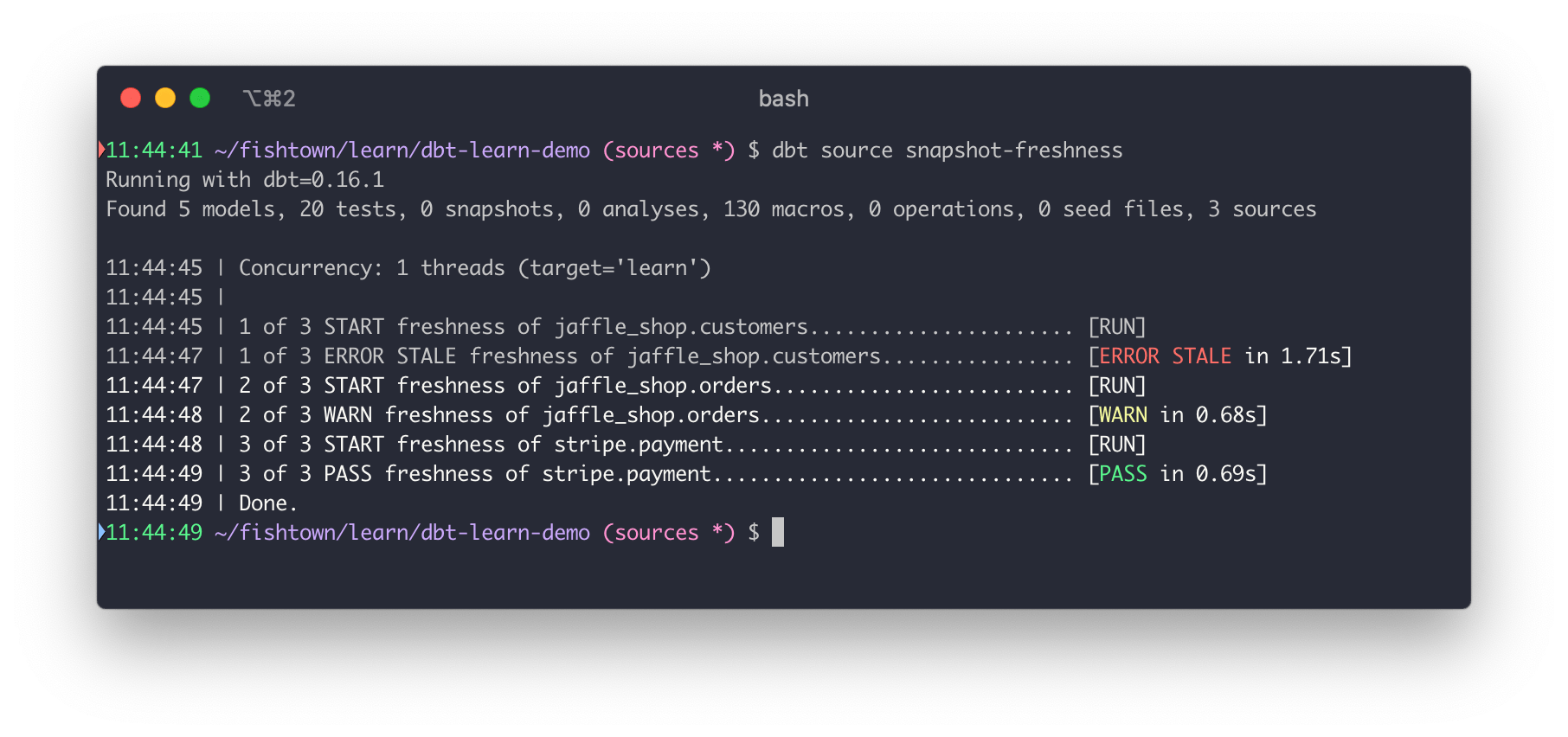

Uh oh! Not everything is as fresh as we'd like!

Filter

Some databases can have tables where a filter over certain columns are required, in order prevent a full scan of the table, which could be costly. In order to do a freshness check on such tables a filter argument can be added to the configuration, e.g. filter: _etl_loaded_at >= date_sub(current_date(), interval 1 day). For the example above, the resulting query would look like

select
  max(_etl_loaded_at) as max_loaded_at,
  convert_timezone('UTC', current_timestamp()) as snapshotted_at
from raw.jaffle_shop.orders
where _etl_loaded_at >= date_sub(current_date(), interval 1 day)

FAQs

How do I exclude a table from a freshness snapshot?

Some tables in a data source may be updated infrequently. If you've set a freshness property at the source level, this table is likely to fail checks.

To work around this, you can set the table's freshness to null (freshness: null) to "unset" the freshness for a particular table:

models/<filename>.yml

version: 2

sources:
  - name: jaffle_shop
    database: raw

    freshness:
      warn_after: {count: 12, period: hour}
      error_after: {count: 24, period: hour}

    loaded_at_field: _etl_loaded_at

    tables:
      - name: orders
      - name: product_skus
        freshness: null # do not check freshness for this table

How do I snapshot freshness for one source only?

Use the --select flag to snapshot freshness for specific sources. Eg:

# Snapshot freshness for all Jaffle Shop tables:
$ dbt source freshness --select source:jaffle_shop

# Snapshot freshness for a particular source <Term id="table" />:
$ dbt source freshness --select source:jaffle_shop.orders

# Snapshot freshness for multiple particular source tables:
$ dbt source freshness --select source:jaffle_shop.orders source:jaffle_shop.customers

See the source freshness command reference for more information.

Are the results of freshness stored anywhere?

Yes!

The dbt source freshness command will output a pass/warning/error status for each table selected in the freshness snapshot.

Additionally, dbt will write the freshness results to a file in the target/ directory called sources.json by default. You can also override this destination, use the -o flag to the dbt source freshness command.

After enabling source freshness within a job, configure Artifacts in your Project Details page, which you can find by clicking the gear icon and then selecting Account settings. You can see the current status for source freshness by clicking View Sources in the job page.
